Building TUM in a Day is a 3D reconstruction pipeline that combines VGGT, NKSR, and CityGaussian.

Abstract

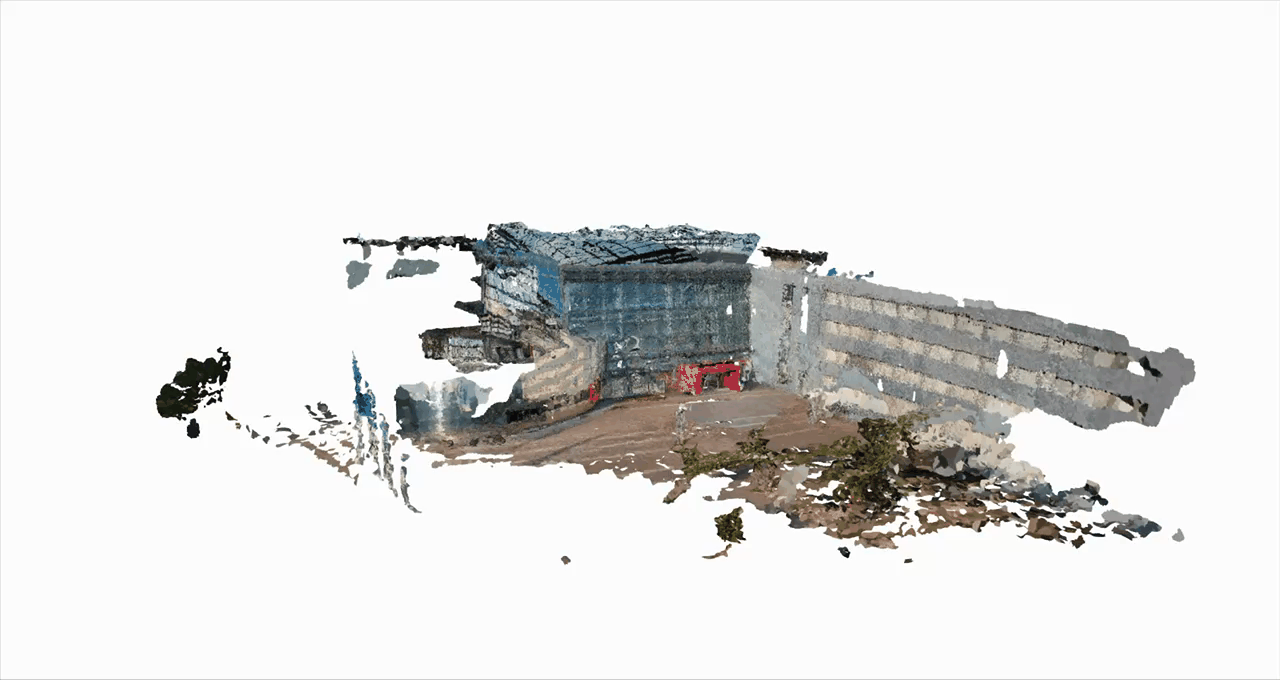

We present a metric 3D reconstruction pipeline that leverages recent transformer-based models for dense reconstruction of large-scale real-world environments. Building upon VGGT, our method generates a 3D scene reconstruction from monocular RGB videos and addresses key challenges in scalability, metric consistency, and dense surface recovery. To achieve this, we introduce strategies for large-scale alignment across video chunks, integrate MAST3R for scale estimation, and employ NKSR and CityGaussian for dense reconstructions. We evaluate our pipeline on a custom dataset captured at the TUM Mathematics and Informatics building, which features reflective glass facades, a transition from outside to inside, and an extended atrium-like hall. Our results demonstrate that the proposed approach preserves local accuracy, highlighting both the strengths and limitations of current transformer-based 3D reconstruction methods in practical deployment scenarios.

Installation

1. Clone this repository

git clone --recurse-submodules https://github.com/clsti/DL4SAI.git
cd DL4SAI

2. Install dependencies

This project builds on several external components. Please install them following their official instructions:

• VGGT & Mast3r
• NKSR
• CityGaussian

Quick start

After successful installation of the packages, you can run batched VGGT processing with the following code:

from modules.pcl_pipeline.batched_vggt.main import BatchedVGGT
import numpy as np

# Confidence thresholds for filtering
conf_out = 0.6
conf_trs = 1.0
conf_dict = {
    0: conf_out, 1: conf_out, 2: conf_out,
    3: conf_trs, 4: conf_trs, 5: conf_trs,
    6: conf_trs, 7: conf_trs, 8: conf_trs
}

# Run batched VGGT
proc = BatchedVGGT(
    "<path-to-videos>",
    verbose=True,
    use_cached_batches=False,
    use_cached_pcls=False,
    max_image_size=80,
    conf_thres_visu=0.7,
    conf_thres_align=0.5,
    color=True,
    transition_filter=conf_dict
)

batched_pred, pcl, color = proc.run()

# Save outputs
np.savez(
    'pcl_data.npz',
    pcl=pcl,
    color=color,
    predictions=batched_pred
)

Running the Pipeline

python DL4SAI/main.py

Running NKSR Only

# usage: all arguments except for  the nksr_env_name should be passed as strings
conda run -n <nksr_env_name> python <path-to-project>/DL4SAI/DL4SAI/modules/densify_pipeline/nksr_adapter.py \
    <path-to-pointcloud.npz> \
    <std-of-noise> \
    <alpha> \ # set to -1 if it should be estimated
    <use-GPU> \
    <path-to-project>/DL4SAI/submodules/NKSR/examples \
    <path-to-normals.pt> \ # ignored if alpha=-1
    <verbose> \
    <device>

Licence Information

Please see THIRD_PARTY_LICENSES.txt for information about the licenses of third-party components used.
